The workflows Package

Data Science
R
Modeling
Author

Robert Lankford

Published

June 27, 2023

This post covers the workflows package, which focuses on bundling together many of the steps previously covered in this series.

Setup

Packages

The following packages are required:

Data

I utilized the penguins data set from the modeldata package for these examples.

Note that the outcome variable is forced to be binary by assigning all the odd-numbered rows as “Chinstrap” and the even numbered rows as “Adelie”. This is done to (1) ensure that the outcome is binary so certain functions and techniques can be used and (2) make the outcome a little more difficult to predict to better demonstrate the difference in the construction of the two modeling algorithms used.

Additionally, referencing a previous post on the rsample package, a 70/30 train/test initial_split() on both data sets is taken. It is then passed to the training() and testing() functions to extract the training and testing data sets, respectively.

Code
data("penguins", package = "modeldata")

penguins_tbl <- penguins %>%
  mutate(
    #> Need a binary outcome
    species = ifelse(row_number() %% 2 == 0, "Adelie", "Chinstrap"),
    species = factor(species, levels = c("Adelie", "Chinstrap"))
  )

set.seed(1914)
penguins_split_obj <- initial_split(penguins_tbl, prop = 0.7)
penguins_train_tbl <- training(penguins_split_obj)

penguins_train_tbl
# A tibble: 240 × 7
   species   island bill_length_mm bill_depth_mm flipper_length_mm body_…¹ sex
   <fct>     <fct>           <dbl>         <dbl>             <int>   <int> <fct>
 1 Chinstrap Biscoe           36.5          16.6               181    2850 fema…
 2 Adelie    Biscoe           52.5          15.6               221    5450 male
 3 Chinstrap Dream            49.7          18.6               195    3600 male
 4 Chinstrap Biscoe           40.6          18.6               183    3550 male
 5 Chinstrap Biscoe           44.9          13.8               212    4750 fema…
 6 Chinstrap Biscoe           39.6          17.7               186    3500 fema…
 7 Chinstrap Biscoe           45.8          14.2               219    4700 fema…
 8 Chinstrap Dream            45.9          17.1               190    3575 fema…
 9 Chinstrap Biscoe           46.1          13.2               211    4500 fema…
10 Chinstrap Biscoe           37.7          16                 183    3075 fema…
# … with 230 more rows, and abbreviated variable name ¹​body_mass_g
penguins_test_tbl <- testing(penguins_split_obj)

penguins_test_tbl
# A tibble: 104 × 7
   species   island    bill_length_mm bill_depth_mm flipper_leng…¹ body_…² sex
   <fct>     <fct>              <dbl>         <dbl>          <int>   <int> <fct>
 1 Chinstrap Torgersen           40.3          18              195    3250 fema…
 2 Chinstrap Torgersen           38.9          17.8            181    3625 fema…
 3 Adelie    Torgersen           37.8          17.3            180    3700 <NA>
 4 Chinstrap Torgersen           34.6          21.1            198    4400 male
 5 Adelie    Torgersen           36.6          17.8            185    3700 fema…
 6 Chinstrap Torgersen           38.7          19              195    3450 fema…
 7 Chinstrap Torgersen           34.4          18.4            184    3325 fema…
 8 Adelie    Biscoe              37.7          18.7            180    3600 male
 9 Adelie    Biscoe              40.5          18.9            180    3950 male
10 Chinstrap Dream               39.5          17.8            188    3300 fema…
# … with 94 more rows, and abbreviated variable names ¹​flipper_length_mm,
#   ²​body_mass_g

Workflow

The workflows package bundles many of the model development steps in the tidymodels ecosystem together into a single object called a workflow. Start by creating an empty workflow using the workflow() function.

wflw <- workflow()

wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: None
Model: None

A workflow can be used to bundle several steps together making it easier to keep track of intermediate steps and the final model object, as well as providing a quick and convenient way to experiment with different model algorithms, pre-processing steps, etc. The workflows package is still under development with the following model development steps (called “stages”) currently being supported (additional steps may be developed in the future):

  • Pre-Processing
  • Model Fitting

Pre-Processing

The first stage in a workflow is often to pre-process the training data. This can be achieved in several ways:

  1. Adding a formula
  2. Adding variables
  3. Adding a pre-processing recipe()

Formula

If no pre-processing is desired, the add_formula() function can be used to add the desired formula() for the model. The result is a workflow with the formula listed under “Preprocessor”.

wflw %>%
  add_formula(species ~ .)
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Formula
Model: None

── Preprocessor ────────────────────────────────────────────────────────────────
species ~ .

In addition to adding a formula, an existing formula can be removed from a workflow using the remove_formula() function or updated to a different formula using the update_formula() function.

Variables

An alternative method is to specify the outcome and predictor variables using the add_variables() function. Helpers from the tidyselect package can be used, if desired. Note that in using the everything() function below for predictors, the variable listed in outcomes is removed from the data set first. This results in the predictors argument being every other variable excluding the variable in the outcomes argument. Note that including variables in a workflow only specifies the names of the variables. No data for those variables is added yet.

wflw %>%
  add_variables(outcomes = species, predictors = everything())
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Variables
Model: None

── Preprocessor ────────────────────────────────────────────────────────────────
Outcomes: species
Predictors: everything()

In addition to adding variables, existing variables can be removed from a workflow using the remove_variables() function or updated to different variables using the update_variables() function. Again, this just removes or updates the names of the variables, it does not add any data on the variables.

Recipe

If pre-processing steps are desired before modeling, they can be added using a recipe() from the recipes package. More information can be found in a previous post

Two simple recipes are included below. The first one removes missing values from all predictors and normalizes all numeric variables that start with “bill”. The second one removes missing values from all predictors, normalizes all numeric predictors, and one-hot-encodes all nominal predictors.

recipe1_obj <- recipe(species ~ ., data = penguins_train_tbl) %>%
  step_naomit(all_predictors(), skip = FALSE) %>%
  step_normalize(starts_with("bill"))

recipe1_obj
Recipe

Inputs:

      role #variables
   outcome          1
 predictor          6

Operations:

Removing rows with NA values in all_predictors()
Centering and scaling for starts_with("bill")
recipe2_obj <- recipe(species ~ ., data = penguins_train_tbl) %>%
  step_naomit(all_predictors(), skip = FALSE) %>%
  step_normalize(all_numeric_predictors()) %>%
  step_dummy(all_nominal_predictors(), one_hot = TRUE)

recipe2_obj
Recipe

Inputs:

      role #variables
   outcome          1
 predictor          6

Operations:

Removing rows with NA values in all_predictors()
Centering and scaling for all_numeric_predictors()
Dummy variables from all_nominal_predictors()

A recipe can be added to a workflow using the add_recipe() function. The result is a workflow with the recipe listed under “Preprocessor”.

recipe1_wflw <- wflw %>%
  add_recipe(recipe1_obj)

recipe1_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: None

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

In addition to adding a recipe, an existing recipe can be removed from a workflow using the remove_recipe() function or updated to different recipe using the update_recipe() function.

#> Method #1
recipe2_wflw <- recipe1_wflw %>%
  remove_recipe() %>%
  add_recipe(recipe2_obj)

#> Method #2
recipe2_wflw <- recipe1_wflw %>%
  update_recipe(recipe2_obj)

recipe2_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: None

── Preprocessor ────────────────────────────────────────────────────────────────
3 Recipe Steps

• step_naomit()
• step_normalize()
• step_dummy()

Models

After adding a formula or a recipe to a workflow, the next step is to add a model. Specifically, it should be a model specification (that is, a specification not fit on the actual data) created with the parsnip package. More information can be found in a previous post.

Below, two model specifications are created: a logistic regression, using logistic_reg(), and a random forest, using rand_forest(). Note that the hyperparameters of the random forest are set to tune(). This will be explored more later.

mod_logit_spec <- logistic_reg() %>%
  set_engine("glm")

mod_logit_spec
Logistic Regression Model Specification (classification)

Computational engine: glm
mod_rf_spec <- rand_forest() %>%
  set_mode("classification") %>%
  set_engine("ranger") %>%
  set_args(
    mtry = tune(),
    trees = tune(),
    min_n = tune()
  )

mod_rf_spec
Random Forest Model Specification (classification)

Main Arguments:
  mtry = tune()
  trees = tune()
  min_n = tune()

Computational engine: ranger

A model specification can be added to a workflow using the add_model() function. The result is a workflow with the recipe, formula, or variables listed under “Preprocessor” and the model specification under “Model”.

logit_spec_wflw <- recipe1_wflw %>%
  add_model(mod_logit_spec)

logit_spec_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: logistic_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

── Model ───────────────────────────────────────────────────────────────────────
Logistic Regression Model Specification (classification)

Computational engine: glm

Once a model specification has been added to a workflow, it can be passed to the parsnip::fit() function with the training data set. A finalized model object will not be listed under “Model”.

logit_fit_wflw <- logit_spec_wflw %>%
  fit(data = penguins_train_tbl)

logit_fit_wflw
══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: logistic_reg()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

── Model ───────────────────────────────────────────────────────────────────────

Call:  stats::glm(formula = ..y ~ ., family = stats::binomial, data = data)

Coefficients:
      (Intercept)        islandDream    islandTorgersen     bill_length_mm
         7.136341          -0.595247          -0.868933          -0.167308
    bill_depth_mm  flipper_length_mm        body_mass_g            sexmale
        -0.988114           0.013772          -0.002021          -2.001235

Degrees of Freedom: 230 Total (i.e. Null);  223 Residual
Null Deviance:      320
Residual Deviance: 169.4    AIC: 185.4

In addition to adding a model specification, an existing model specification can be removed from a workflow using the remove_model() function or updated to different model specification using the update_model() function.

#> Method #1
rf_spec_wflw <- logit_fit_wflw %>%
  remove_model() %>%
  add_model(mod_rf_spec)

#> Method #2
rf_spec_wflw <- logit_fit_wflw %>%
  update_model(mod_rf_spec)

rf_spec_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

── Model ───────────────────────────────────────────────────────────────────────
Random Forest Model Specification (classification)

Main Arguments:
  mtry = tune()
  trees = tune()
  min_n = tune()

Computational engine: ranger

Note that a model specification with hyperparameters marked with tune() was added to the workflow. Attempting to run parsnip::fit() on this model results in an error as the hyperparameters do not have actual values.

rf_spec_wflw %>%
  fit(data = penguins_train_tbl)
Error in ranger::ranger(x = maybe_data_frame(x), y = y, mtry = min_cols(~tune(), : Error: Invalid value for num.trees.

Tune Hyperparameters

At the time of writing, the workflows package does not include a step for tuning hyperparameters. Therefore, hyperparameters must be tuned using the tune and dials packages. Details of using these packages can be found in a previous post. A brief summary is provided below.

For a random forest, the three hyperparameters are mtry(), trees(), and min_n(). They are passed to the parameters() function (after mtry() is passed to finalize() with the training data) to create a parameter collection.

params <- parameters(
  finalize(mtry(), penguins_train_tbl[ ,-1]),
  trees(),
  min_n()
)

params
Collection of 3 parameters for tuning

 identifier  type    object
       mtry  mtry nparam[+]
      trees trees nparam[+]
      min_n min_n nparam[+]

A grid of the hyperparameters is created using the grid_regular() function.

grid_regular_tbl <- grid_regular(params)

grid_regular_tbl
# A tibble: 27 × 3
    mtry trees min_n
   <int> <int> <int>
 1     1     1     2
 2     3     1     2
 3     6     1     2
 4     1  1000     2
 5     3  1000     2
 6     6  1000     2
 7     1  2000     2
 8     3  2000     2
 9     6  2000     2
10     1     1    21
# … with 17 more rows

In order to get the folds needed for tuning the hyperparameters, the processed training data needs to be extracted by the recipe. Therefore, the recipe needs to be removed from the workflow and replaced with the variables.

rf_spec_vars_wflw <- rf_spec_wflw %>%
  remove_recipe() %>%
  add_variables(outcomes = species, predictors = everything())

rf_spec_vars_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Variables
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
Outcomes: species
Predictors: everything()

── Model ───────────────────────────────────────────────────────────────────────
Random Forest Model Specification (classification)

Main Arguments:
  mtry = tune()
  trees = tune()
  min_n = tune()

Computational engine: ranger

From there, the recipe is passed to the juice() function to get the processed training data.

penguins_train_prep_tbl <- recipe2_obj %>%
  prep() %>%
  juice()

penguins_train_prep_tbl
# A tibble: 231 × 10
   bill_length…¹ bill_…² flipp…³ body_…⁴ species islan…⁵ islan…⁶ islan…⁷ sex_f…⁸
           <dbl>   <dbl>   <dbl>   <dbl> <fct>     <dbl>   <dbl>   <dbl>   <dbl>
 1        -1.35  -0.225   -1.41   -1.67  Chinst…       1       0       0       1
 2         1.54  -0.726    1.36    1.52  Adelie        1       0       0       0
 3         1.03   0.779   -0.440  -0.753 Chinst…       0       1       0       0
 4        -0.612  0.779   -1.27   -0.814 Chinst…       1       0       0       0
 5         0.166 -1.63     0.740   0.658 Chinst…       1       0       0       1
 6        -0.793  0.327   -1.06   -0.876 Chinst…       1       0       0       1
 7         0.328 -1.43     1.23    0.597 Chinst…       1       0       0       1
 8         0.347  0.0263  -0.787  -0.784 Chinst…       0       1       0       1
 9         0.383 -1.93     0.670   0.351 Chinst…       1       0       0       1
10        -1.14  -0.526   -1.27   -1.40  Chinst…       1       0       0       1
# … with 221 more rows, 1 more variable: sex_male <dbl>, and abbreviated
#   variable names ¹​bill_length_mm, ²​bill_depth_mm, ³​flipper_length_mm,
#   ⁴​body_mass_g, ⁵​island_Biscoe, ⁶​island_Dream, ⁷​island_Torgersen, ⁸​sex_female

Finally, the processed training data is passed to vfold_cv() with v = 5 to create five folds.

set.seed(1915)
folds_tbl <- vfold_cv(penguins_train_prep_tbl, v = 5)

folds_tbl
#  5-fold cross-validation
# A tibble: 5 × 2
  splits           id
  <list>           <chr>
1 <split [184/47]> Fold1
2 <split [185/46]> Fold2
3 <split [185/46]> Fold3
4 <split [185/46]> Fold4
5 <split [185/46]> Fold5

The tune_grid() function is then used to tune the hyperparameters for the random forest. The metric_set() function is used to specify roc_auc() as the optimization metric. While the tune package cannot currently be used as an official step in a workflow, a workflow can be passed to functions from the the package.

mod_rf_tuned_regular_tbl <- tune_grid(
  rf_spec_vars_wflw,
  resamples = folds_tbl,
  grid      = grid_regular_tbl,
  metrics   = metric_set(roc_auc)
)

mod_rf_tuned_regular_tbl
# Tuning results
# 5-fold cross-validation
# A tibble: 5 × 4
  splits           id    .metrics          .notes
  <list>           <chr> <list>            <list>
1 <split [184/47]> Fold1 <tibble [27 × 7]> <tibble [0 × 3]>
2 <split [185/46]> Fold2 <tibble [27 × 7]> <tibble [0 × 3]>
3 <split [185/46]> Fold3 <tibble [27 × 7]> <tibble [0 × 3]>
4 <split [185/46]> Fold4 <tibble [27 × 7]> <tibble [0 × 3]>
5 <split [185/46]> Fold5 <tibble [27 × 7]> <tibble [0 × 3]>

The “optimal” parameter combinations are shown below.

show_best(mod_rf_tuned_regular_tbl)
# A tibble: 5 × 9
   mtry trees min_n .metric .estimator  mean     n std_err .config
  <int> <int> <int> <chr>   <chr>      <dbl> <int>   <dbl> <chr>
1     3  1000    21 roc_auc binary     0.887     5  0.0245 Preprocessor1_Model14
2     6  2000    40 roc_auc binary     0.886     5  0.0249 Preprocessor1_Model27
3     3  2000    40 roc_auc binary     0.886     5  0.0231 Preprocessor1_Model26
4     3  2000    21 roc_auc binary     0.886     5  0.0252 Preprocessor1_Model17
5     1  2000    21 roc_auc binary     0.886     5  0.0234 Preprocessor1_Model16

The top parameter combination is extracted and then the tune() placeholders are replaced with them using the finalize_workflow() function.

mod_rf_best_params_tbl <- select_best(mod_rf_tuned_regular_tbl)

rf_spec_tuned_wflw <- rf_spec_wflw %>%
  finalize_workflow(mod_rf_best_params_tbl)

rf_spec_tuned_wflw
══ Workflow ════════════════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

── Model ───────────────────────────────────────────────────────────────────────
Random Forest Model Specification (classification)

Main Arguments:
  mtry = 3
  trees = 1000
  min_n = 21

Computational engine: ranger

With actual hyperparameter values now in place, the workflow is then passed to the parsnip::fit() function with the training data set.

set.seed(1916)

rf_fit_wflw <- rf_spec_tuned_wflw %>%
  fit(penguins_train_tbl)

rf_fit_wflw
══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
2 Recipe Steps

• step_naomit()
• step_normalize()

── Model ───────────────────────────────────────────────────────────────────────
Ranger result

Call:
 ranger::ranger(x = maybe_data_frame(x), y = y, mtry = min_cols(~3L,      x), num.trees = ~1000L, min.node.size = min_rows(~21L, x),      num.threads = 1, verbose = FALSE, seed = sample.int(10^5,          1), probability = TRUE)

Type:                             Probability estimation
Number of trees:                  1000
Sample size:                      231
Number of independent variables:  6
Mtry:                             3
Target node size:                 21
Variable importance mode:         none
Splitrule:                        gini
OOB prediction error (Brier s.):  0.1294809

While this is not the most convenient of solutions, it still works. Perhaps in the future, there will be a tune_* function added to the workflows package that allows for seamless hyperparameter tuning integration with a workflow.

Comparisons

With two models now being constructed, comparisons between them can be made. Note that, for simplicity, all missing values are removed from the test data.

penguins_test_no_missing_tbl <- tidyr::drop_na(penguins_test_tbl)

Specifics on performance metrics and how to calculate them using the yardstick package can be found in a previous post.

Logistic Regression

Below are the out-of-sample confusion matrix, performance metrics, and Area Under the Curve (AUC) for the Logistic Regression model. Focusing specifically on the AUC value of ~0.89, it would suggest that the Logistic Regression does a good job at modeling this data set.

logit_fit_wflw %>%
  predict(penguins_test_tbl) %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  conf_mat(truth = species, estimate = .pred_class)
           Truth
Prediction  Adelie Chinstrap
  Adelie        47         8
  Chinstrap      8        39
logit_fit_wflw %>%
  predict(penguins_test_tbl) %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  conf_mat(truth = species, estimate = .pred_class) %>%
  summary()
# A tibble: 13 × 3
   .metric              .estimator .estimate
   <chr>                <chr>          <dbl>
 1 accuracy             binary         0.843
 2 kap                  binary         0.684
 3 sens                 binary         0.855
 4 spec                 binary         0.830
 5 ppv                  binary         0.855
 6 npv                  binary         0.830
 7 mcc                  binary         0.684
 8 j_index              binary         0.684
 9 bal_accuracy         binary         0.842
10 detection_prevalence binary         0.539
11 precision            binary         0.855
12 recall               binary         0.855
13 f_meas               binary         0.855
logit_fit_wflw %>%
  predict(penguins_test_tbl, type = "prob") %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  roc_auc(truth = species, estimate = .pred_Adelie)
# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.891

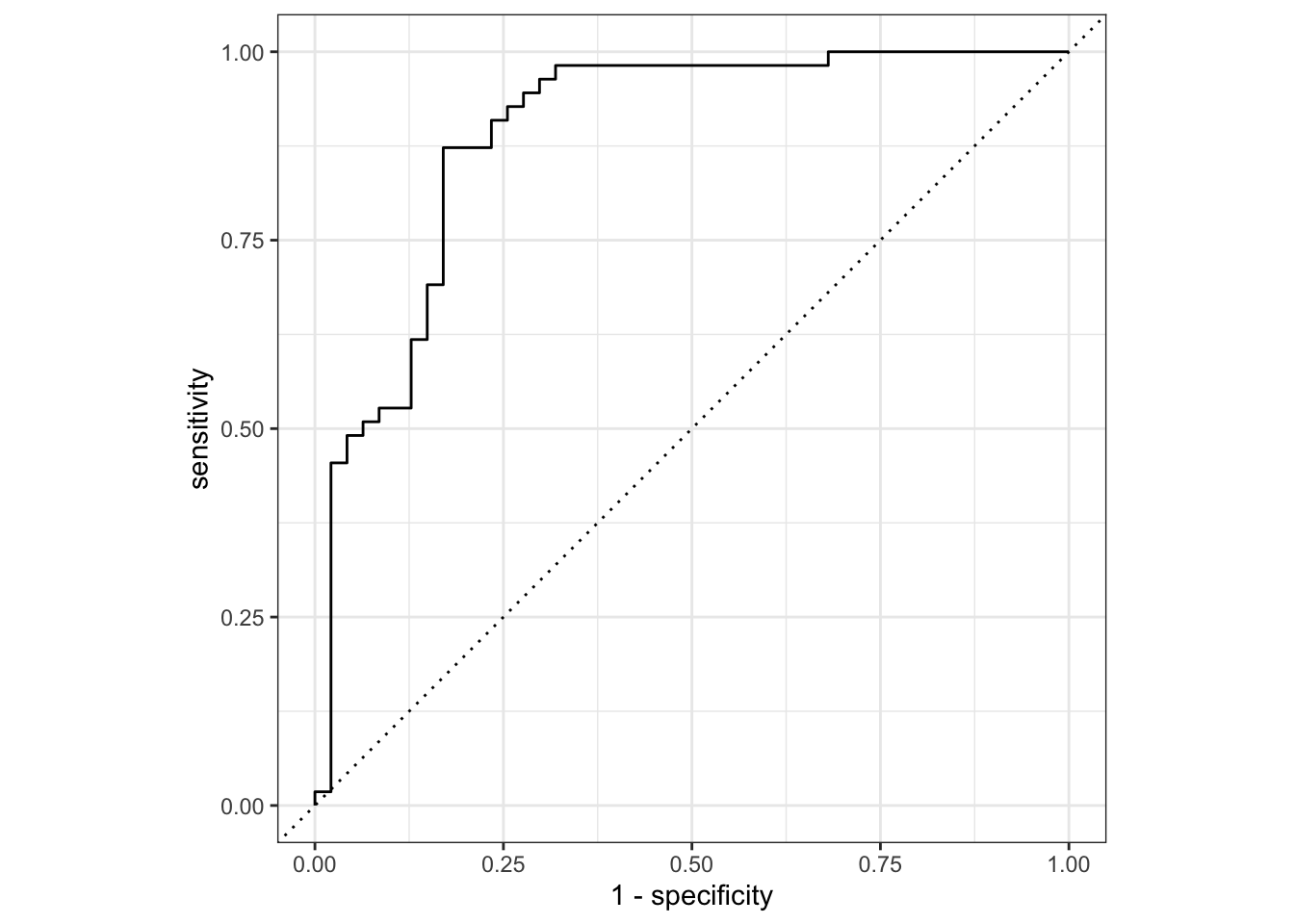

Plotting the ROC Curves also supports the assertion that the Logistic Regression does a good job at plotting this data set.

logit_fit_wflw %>%
  predict(penguins_test_tbl, type = "prob") %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  roc_curve(truth = species, estimate = .pred_Adelie) %>%
  autoplot()

Random Forest

Next are the out-of-sample confusion matrix, performance metrics, and Area Under the Curve (AUC) for the Random Forest model. Focusing specifically on the AUC value of ~0.93, it would suggest that the not only does the Random Forest do a good job at modeling this data set, it does a better job than the Logistic Regression.

rf_fit_wflw %>%
  predict(penguins_test_tbl) %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  conf_mat(truth = species, estimate = .pred_class)
           Truth
Prediction  Adelie Chinstrap
  Adelie        45         8
  Chinstrap     10        39
rf_fit_wflw %>%
  predict(penguins_test_tbl) %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  conf_mat(truth = species, estimate = .pred_class) %>%
  summary()
# A tibble: 13 × 3
   .metric              .estimator .estimate
   <chr>                <chr>          <dbl>
 1 accuracy             binary         0.824
 2 kap                  binary         0.646
 3 sens                 binary         0.818
 4 spec                 binary         0.830
 5 ppv                  binary         0.849
 6 npv                  binary         0.796
 7 mcc                  binary         0.646
 8 j_index              binary         0.648
 9 bal_accuracy         binary         0.824
10 detection_prevalence binary         0.520
11 precision            binary         0.849
12 recall               binary         0.818
13 f_meas               binary         0.833
rf_fit_wflw %>%
  predict(penguins_test_tbl, type = "prob") %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  roc_auc(truth = species, estimate = .pred_Adelie)
# A tibble: 1 × 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 roc_auc binary         0.930

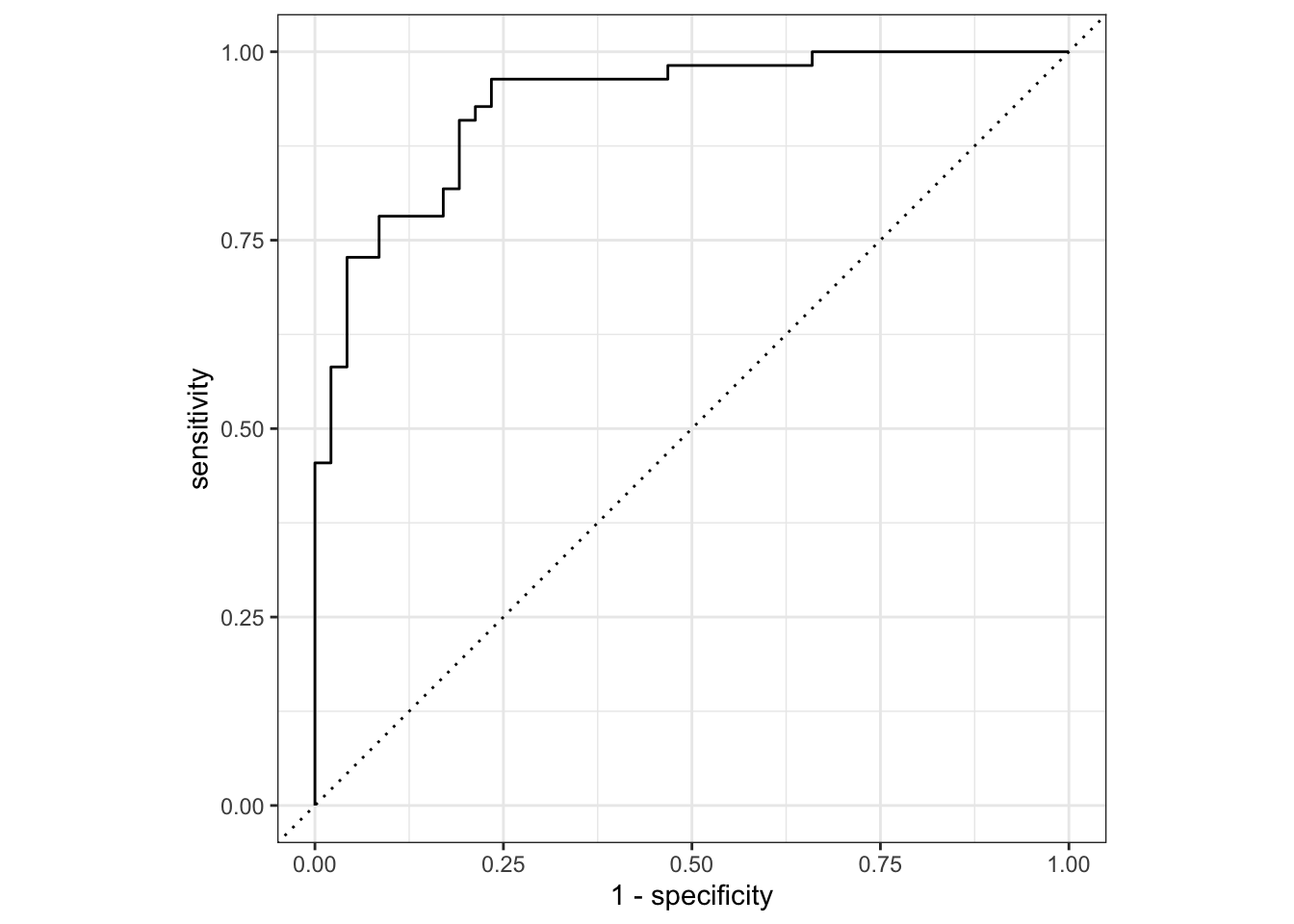

Comparing the two ROC Curves also supports the conclusion that the Random Forest outperforms the Logistic Regression. The AUC is clearly larger for the Random Forest than for the Logistic Regression.s

rf_fit_wflw %>%
  predict(penguins_test_tbl, type = "prob") %>%
  bind_cols(penguins_test_no_missing_tbl) %>%
  roc_curve(truth = species, estimate = .pred_Adelie) %>%
  autoplot()

Notes

This post is based on a presentation that was given on the date listed. It may be updated from time to time to fix errors, detail new functions, and/or remove deprecated functions so the packages and R version will likely be newer than what was available at the time.

The R session information used for this post:

R version 4.2.1 (2022-06-23)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS 14.1.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2-arm64/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
[1] yardstick_1.1.0 tune_1.0.1      dials_1.1.0     scales_1.2.1
[5] parsnip_1.0.3   recipes_1.0.4   dplyr_1.0.10    rsample_1.1.1
[9] workflows_1.1.2

loaded via a namespace (and not attached):
 [1] tidyr_1.2.1         jsonlite_1.8.0      splines_4.2.1
 [4] foreach_1.5.2       prodlim_2019.11.13  GPfit_1.0-8
 [7] renv_0.16.0         yaml_2.3.5          globals_0.16.2
[10] ipred_0.9-13        pillar_1.8.1        lattice_0.20-45
[13] glue_1.6.2          digest_0.6.29       hardhat_1.2.0
[16] colorspace_2.0-3    htmltools_0.5.3     Matrix_1.4-1
[19] timeDate_4022.108   pkgconfig_2.0.3     lhs_1.1.6
[22] DiceDesign_1.9      listenv_0.8.0       purrr_0.3.5
[25] ranger_0.14.1       gower_1.0.1         lava_1.7.1
[28] timechange_0.1.1    tibble_3.1.8        farver_2.1.1
[31] generics_0.1.3      ggplot2_3.4.0       ellipsis_0.3.2
[34] withr_2.5.0         furrr_0.3.1         nnet_7.3-17
[37] cli_3.6.1           survival_3.3-1      magrittr_2.0.3
[40] evaluate_0.16       future_1.29.0       fansi_1.0.3
[43] parallelly_1.32.1   MASS_7.3-57         class_7.3-20
[46] tools_4.2.1         lifecycle_1.0.3     stringr_1.5.0
[49] munsell_0.5.0       compiler_4.2.1      rlang_1.1.1
[52] grid_4.2.1          iterators_1.0.14    rstudioapi_0.14
[55] labeling_0.4.2      rmarkdown_2.16      gtable_0.3.1
[58] codetools_0.2-18    R6_2.5.1            lubridate_1.9.0
[61] knitr_1.40          fastmap_1.1.0       future.apply_1.10.0
[64] utf8_1.2.2          stringi_1.7.12      parallel_4.2.1
[67] Rcpp_1.0.9          vctrs_0.6.3         rpart_4.1.16
[70] tidyselect_1.2.0    xfun_0.40
