This post documents my experience in the Tidy Time Series and Forecasting in R workshop at rstudio::conf 2020 that took place in San Francisco, CA during January 27-30, 2020.
Following what was presented at the two-day workshop, this second post (part one of day two) will be “everything that is forecasting”. The second day focused on how to use the the tidyverts
packages in forecasting. Due to the length of the material covered in the second day, it has been split into two posts. The first post will begin covering modeling algorithms.
Setup
The following packages are required:
The following data sets are used in this post.
- Monthly retail turnover for department stores in Victoria, Australia
- Yearly economic indicator values for Australia
victoria_dept_stores_tsbl <- aus_retail %>%
filter(
Industry == "Department stores",
State == "Victoria",
year(Month) >= 2000
) %>%
select(Month, Turnover)
victoria_dept_stores_tsbl
# A tsibble: 228 x 2 [1M]
Month Turnover
<mth> <dbl>
1 2000 Jan 228
2 2000 Feb 196.
3 2000 Mar 224.
4 2000 Apr 261.
5 2000 May 265.
6 2000 Jun 299.
7 2000 Jul 206.
8 2000 Aug 240.
9 2000 Sep 251.
10 2000 Oct 270.
# … with 218 more rows
aus_economy_tsbl <- global_economy %>%
filter(Country == "Australia") %>%
select(Year, Growth, CPI, Imports, Exports) %>%
drop_na() %>%
as_tsibble(index = Year)
aus_economy_tsbl
# A tsibble: 57 x 5 [1Y]
Year Growth CPI Imports Exports
<dbl> <dbl> <dbl> <dbl> <dbl>
1 1961 2.49 8.14 15.0 12.4
2 1962 1.30 8.12 12.6 13.9
3 1963 6.21 8.17 13.8 13.0
4 1964 6.98 8.40 13.8 14.9
5 1965 5.98 8.69 15.3 13.2
6 1966 2.38 8.98 15.1 12.9
7 1967 6.30 9.29 13.9 12.9
8 1968 5.10 9.52 14.5 12.3
9 1969 7.04 9.83 13.3 12.0
10 1970 7.17 10.2 13.2 13.0
# … with 47 more rows
Time-Series Decomposition
Many time-series can be broken into three components:
- Seasonality: the periodic repeated fluctuations that occur at a known, fixed period (e.g. monthly patterns)
- Trend-Cycle: the progression of the series over the long-term (trend) and the non-periodic repeated fluctuations (cycle)
- Remainder: the random, irregular “noise” that is leftover after removing the previous two components
The feasts
package provides the STL()
function to easily decomposes a time-series. STL stands for Seasonal and Trend Decomposition using Loess.
victora_dept_stores_stl_mbl <- victoria_dept_stores_tsbl %>%
model(STL = STL(Turnover))
victora_dept_stores_stl_mbl
# A mable: 1 x 1
STL
<model>
1 <STL>
After fitting an STL model, passing the resulting mable()
(model-table) into the components()
function (from the fabletools
package) will return a dable()
(decomposition-table), containing all of the decomposition components.
components(victora_dept_stores_stl_mbl)
# A dable: 228 x 7 [1M]
# Key: .model [1]
# : Turnover = trend + season_year + remainder
.model Month Turnover trend season_year remainder season_adjust
<chr> <mth> <dbl> <dbl> <dbl> <dbl> <dbl>
1 STL 2000 Jan 228 271. -43.1 0.279 271.
2 STL 2000 Feb 196. 272. -84.0 8.10 280.
3 STL 2000 Mar 224. 273. -34.0 -14.6 258.
4 STL 2000 Apr 261. 274. -19.1 5.82 280.
5 STL 2000 May 265. 275. -14.1 4.42 279.
6 STL 2000 Jun 299. 276. 2.94 19.6 296.
7 STL 2000 Jul 206. 277. -28.4 -42.6 234.
8 STL 2000 Aug 240. 278. -50.9 13.0 291.
9 STL 2000 Sep 251. 279. -39.3 11.2 290.
10 STL 2000 Oct 270. 280. -12.9 2.73 283.
# … with 218 more rows

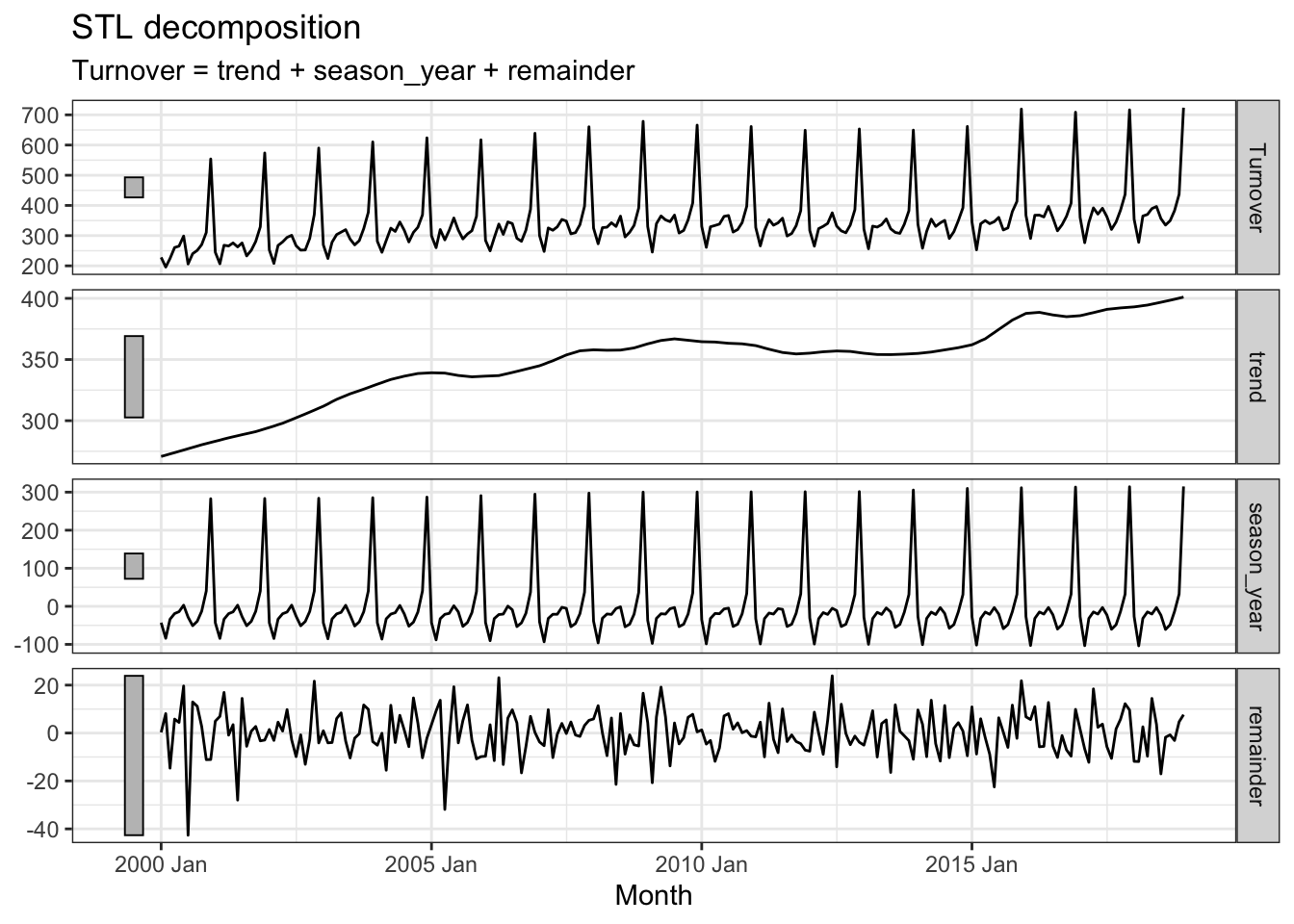

The dable
can then be passed into the autoplot()
function to plot the original series and the decomposed components.
victora_dept_stores_stl_mbl %>%
components() %>%
autoplot() +
theme_bw()

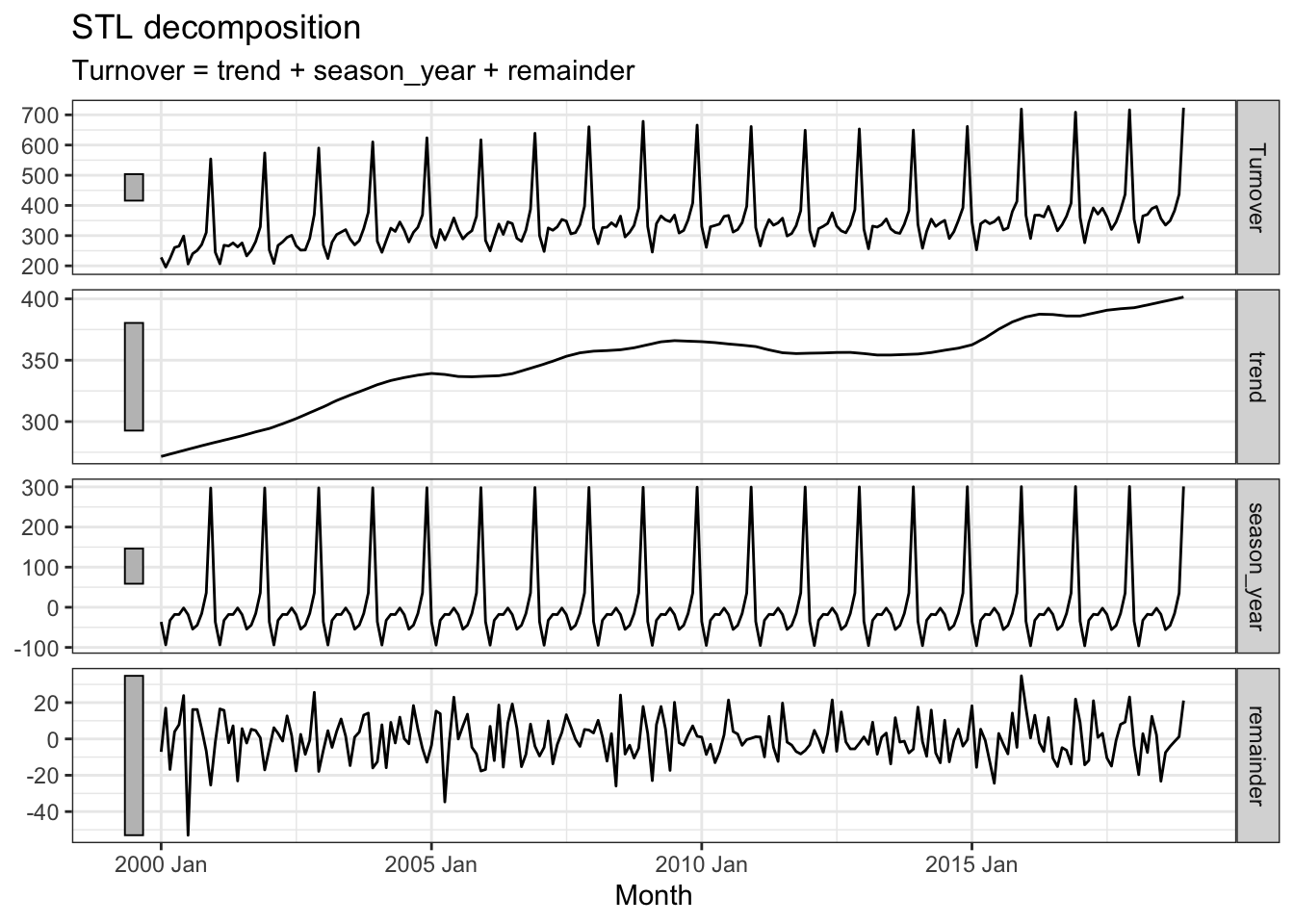

Note that the trend and seasonality of a decomposition do not necessarily have to be fixed. They are allowed to change over time. The helper functions trend
and season
can be added to the STL
function to specify the window
. The window
is the number of consecutive observations (time-periods) used when estimating the seasonal or the trend-cycle component. The shorter the window, the quicker the trend or seasonality is allowed to change. At the extreme, setting the seasonality window to infinity is essentially assuming that the seasonality is identical across each time-period.
Baseline Methods
The fable
package contains several “basic” methods of forecasting. These methods, at times, can prove quite useful, and can even produce good forecasts; however, they will most often be used as baselines to compare the performance of other, often more complicated, forecasting methods. These methods include:
-
MEAN()
(mean): the mean of the entire series is projected forward as the forecast -
NAIVE()
(naive): the last value of the series is projected forward as the forecast -
SNAIVE()
(seasonal naive): the last value of each season of the series (e.g. the quarter or month last year) is projected forward as the forecast -
RW()
(random walk): the last value of the series, plus the average change across the whole series, is projected forward as the forecast
All of these methods can be fit to the data at the same time within the model()
function. Notice that the random walk model requires the use of the drift
helper function. Without drift, a random walk is just the naive model.
victoria_dept_stores_baseline_mbl <- victoria_dept_stores_tsbl %>%
model(
mean = MEAN(Turnover),
naive = NAIVE(Turnover),
snaive = SNAIVE(Turnover),
rw_drift = RW(Turnover ~ drift())
)
victoria_dept_stores_baseline_mbl
# A mable: 1 x 4
mean naive snaive rw_drift
<model> <model> <model> <model>
1 <MEAN> <NAIVE> <SNAIVE> <RW w/ drift>
Once we have these models, we can forecast across an arbitrary time horizon with the forecast()
function. This function returns the titular fable()
(forecast-table). The fable
contains the model type, the time index, the point forecast, and the parameters of the distribution of the forecast as a <dist>
list-column.
victoria_dept_stores_baseline_fbl <- victoria_dept_stores_baseline_mbl %>%
forecast(h = "2 years")
victoria_dept_stores_baseline_fbl
# A fable: 96 x 4 [1M]
# Key: .model [4]
.model Month Turnover .mean
<chr> <mth> <dist> <dbl>
1 mean 2019 Jan N(348, 10513) 348.
2 mean 2019 Feb N(348, 10513) 348.
3 mean 2019 Mar N(348, 10513) 348.
4 mean 2019 Apr N(348, 10513) 348.
5 mean 2019 May N(348, 10513) 348.
6 mean 2019 Jun N(348, 10513) 348.
7 mean 2019 Jul N(348, 10513) 348.
8 mean 2019 Aug N(348, 10513) 348.
9 mean 2019 Sep N(348, 10513) 348.
10 mean 2019 Oct N(348, 10513) 348.
# … with 86 more rows
A fable
with multiple models is automatically sorted by model. Can resort by date to see the forecasts of the different models for the same month.
victoria_dept_stores_baseline_fbl %>%
group_by(.model) %>%
filter(row_number() %in% 1:3) %>%
as_tibble() %>%
mutate(
Month = as.character(Month),
.mean = as.numeric(.mean)
) %>%
kable() %>%
kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)
.model | Month | Turnover | .mean |
---|---|---|---|
mean | 2019 Jan | N(348, 10513) | 348.0303 |
mean | 2019 Feb | N(348, 10513) | 348.0303 |
mean | 2019 Mar | N(348, 10513) | 348.0303 |
naive | 2019 Jan | N(724, 16030) | 723.7000 |
naive | 2019 Feb | N(724, 32059) | 723.7000 |
naive | 2019 Mar | N(724, 48089) | 723.7000 |
snaive | 2019 Jan | N(354, 335) | 354.3000 |
snaive | 2019 Feb | N(278, 335) | 277.8000 |
snaive | 2019 Mar | N(365, 335) | 364.9000 |
rw_drift | 2019 Jan | N(726, 16167) | 725.8837 |
rw_drift | 2019 Feb | N(728, 32475) | 728.0674 |
rw_drift | 2019 Mar | N(730, 48926) | 730.2511 |

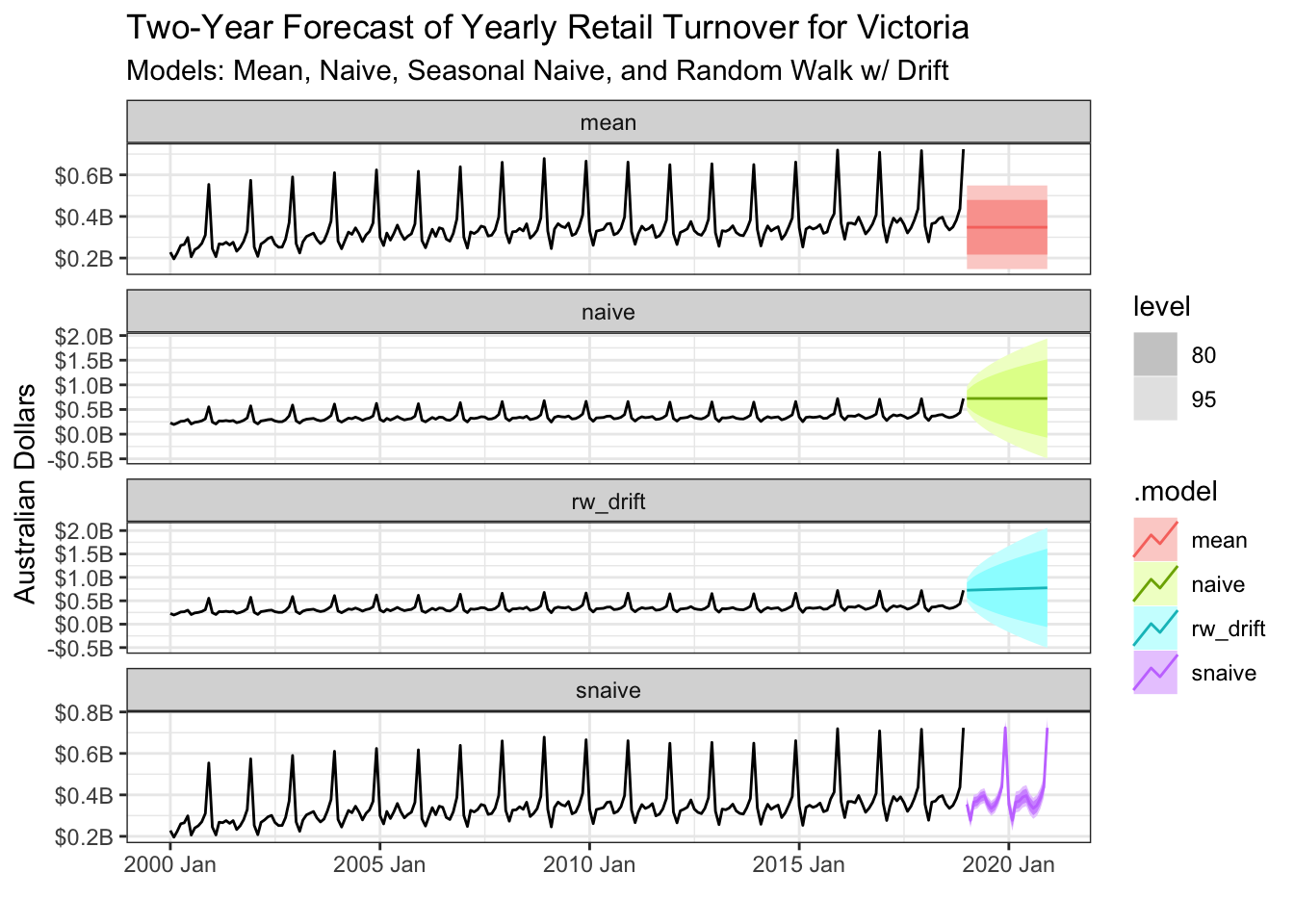

A fable
can be passed directly into the autoplot()
function to plot the forecasts. Note that we get confidence intervals for the forecasts. The point forecast is the mean of the interval.
victoria_dept_stores_baseline_fbl %>%
autoplot(victoria_dept_stores_tsbl) +
facet_wrap(~ .model, ncol = 1, scales = "free_y") +
theme_bw() +
scale_y_continuous(
labels = scales::label_dollar(accuracy = 0.1, scale = 1e-3, suffix = "B")
) +
labs(
title = "Two-Year Forecast of Yearly Retail Turnover for Victoria",
subtitle = "Models: Mean, Naive, Seasonal Naive, and Random Walk w/ Drift",
x = "",
y = "Australian Dollars"
)

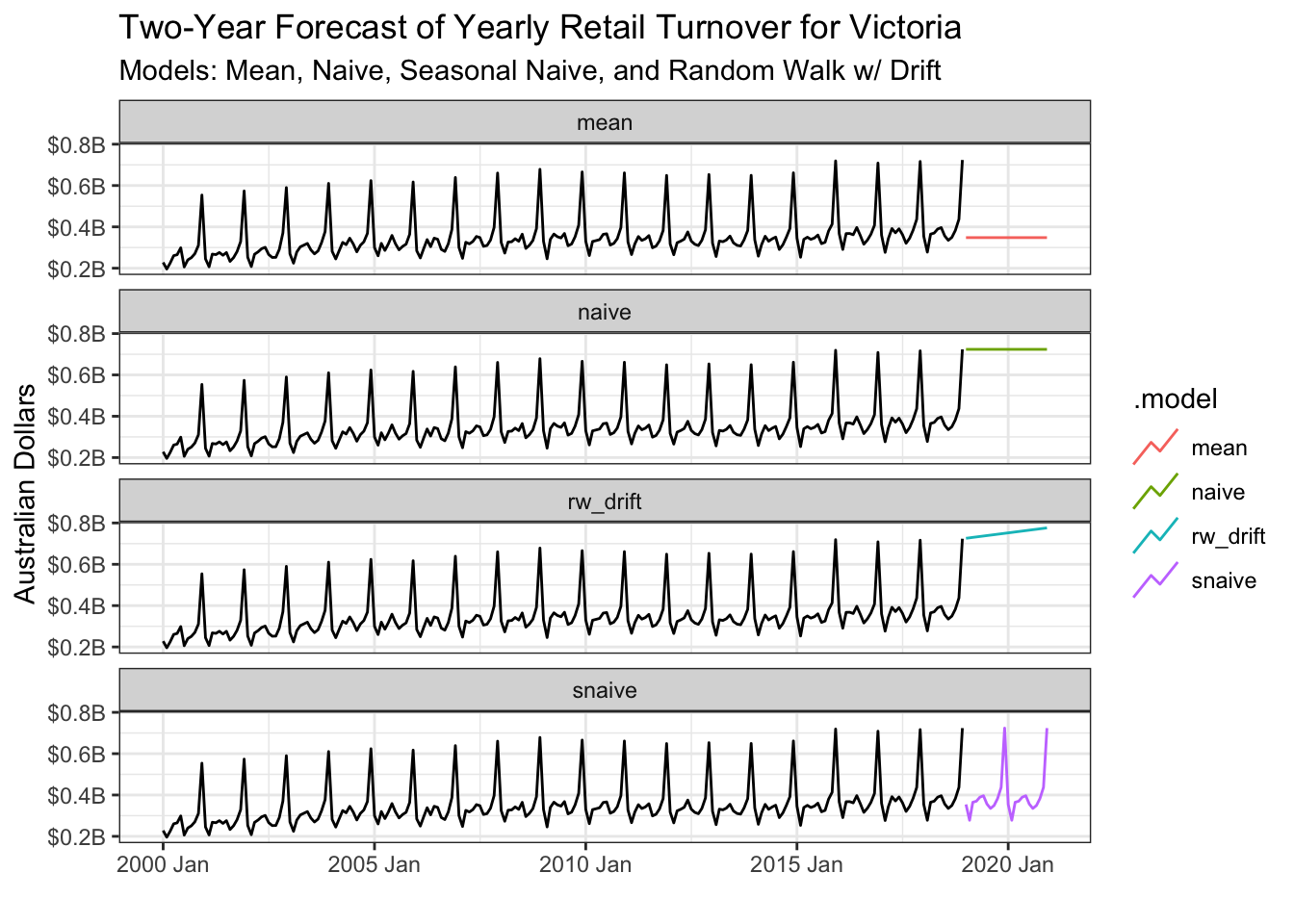

The plotted confidence intervals can be turned off by setting level = NULL
in the autoplot()
function.
victoria_dept_stores_baseline_fbl %>%
autoplot(victoria_dept_stores_tsbl, level = NULL) +
facet_wrap(~ .model, ncol = 1) +
theme_bw() +
scale_y_continuous(
labels = scales::label_dollar(accuracy = 0.1, scale = 1e-3, suffix = "B")
) +
labs(
title = "Two-Year Forecast of Yearly Retail Turnover for Victoria",
subtitle = "Models: Mean, Naive, Seasonal Naive, and Random Walk w/ Drift",
x = "",
y = "Australian Dollars"
)
Complex Methods
We can now start looking at more complicated algorithms. These models take a bit more computational time and power to fit, and are more difficult to interpret; however, they can often outperform the baseline models. The models introduced in the workshop were:
- Exponential Smoothing (ETS)
- Autoregressive Integrated Moving Average (ARIMA)
- Dynamic Regression/Regression with ARIMA Errors (RegARIMA)
Note that the Dynamic Regression method is covered in the next post, which details the second half of day two.
Exponential Smoothing
ExponenTial Smoothing models, also called Error, Trend, and Seasonality models and abbreviated ETS, attempt to forecast a time-series based on its “Level”, “Trend”, and “Seasonal” components. Smoothing parameters are used to control the rates of change of those components. ETS models are similar to models where the forecast is based off of weighted past observations; however, for ETS, the most recent observations have higher weights than the earliest observations. These components can be:
- Additive: the error, trend, and seasonality are added together to get the resulting time-series
- Multiplicative: the error, trend, and seasonality are multiplied together to get the resulting time-series
- Damped: specifically for the trend component, instead of increasing indefinitely, the long-term forecasts will eventually “flatten out”
There are 15 combinations of Exponential Smoothing models available in the fable
package using the ETS()
function. Within the ETS()
function, you can specify the error
, trend
, and season
. If you do not specify these options, the ETS()
function will automatically pick the optimal values based on minimizing the AICc. The options are:
- Additive:
method = "A"
- Multiplicative:
method = "M"
- Additive Damped:
method = "Ad"
- Multiplicative Damped:
method = "Md"
The typical way of expressing an Exponential Smoothing model is ETS(Error, Trend, Seasonal), so an ETS(M,N,A) has multiplicative errors, no trend, and additive seasonality. Note below that we do not have any models with both additive errors and multiplicative seasonality. Dr. Hyndman recommended against using this combination, as they almost never have good results.
victoria_dept_stores_ets_mbl <- victoria_dept_stores_tsbl %>%
model(
ANN = ETS(Turnover ~ error("A") + trend("N") + season("N")),
AAN = ETS(Turnover ~ error("A") + trend("A") + season("N")),
AAdN = ETS(Turnover ~ error("A") + trend("Ad") + season("N")),
ANA = ETS(Turnover ~ error("A") + trend("N") + season("A")),
AAA = ETS(Turnover ~ error("A") + trend("A") + season("A")),
AAdA = ETS(Turnover ~ error("A") + trend("Ad") + season("A")),
MNN = ETS(Turnover ~ error("M") + trend("N") + season("N")),
MAN = ETS(Turnover ~ error("M") + trend("A") + season("N")),
MAdN = ETS(Turnover ~ error("M") + trend("Ad") + season("N")),
MNA = ETS(Turnover ~ error("M") + trend("N") + season("A")),
MAA = ETS(Turnover ~ error("M") + trend("A") + season("A")),
MAdA = ETS(Turnover ~ error("M") + trend("Ad") + season("A")),
MNM = ETS(Turnover ~ error("M") + trend("N") + season("M")),
MAM = ETS(Turnover ~ error("M") + trend("A") + season("M")),
MAdM = ETS(Turnover ~ error("M") + trend("Ad") + season("M")),
)
glimpse(victoria_dept_stores_ets_mbl)
Rows: 1
Columns: 15
$ ANN <model> [ETS(A,N,N)]
$ AAN <model> [ETS(A,A,N)]
$ AAdN <model> [ETS(A,Ad,N)]
$ ANA <model> [ETS(A,N,A)]
$ AAA <model> [ETS(A,A,A)]
$ AAdA <model> [ETS(A,Ad,A)]
$ MNN <model> [ETS(M,N,N)]
$ MAN <model> [ETS(M,A,N)]
$ MAdN <model> [ETS(M,Ad,N)]
$ MNA <model> [ETS(M,N,A)]
$ MAA <model> [ETS(M,A,A)]
$ MAdA <model> [ETS(M,Ad,A)]
$ MNM <model> [ETS(M,N,M)]
$ MAM <model> [ETS(M,A,M)]
$ MAdM <model> [ETS(M,Ad,M)]
We can see what the smoothing parameters are by selecting a specific model and using the report()
function.
Series: Turnover
Model: ETS(M,Ad,A)
Smoothing parameters:
alpha = 0.1257331
beta = 0.000100141
gamma = 0.1437031
phi = 0.9799871
Initial states:
l[0] b[0] s[0] s[-1] s[-2] s[-3] s[-4] s[-5]
272.4276 2.041316 297.5088 35.676 -15.14924 -44.51365 -55.06139 -17.59358
s[-6] s[-7] s[-8] s[-9] s[-10] s[-11]
-3.003334 -18.80118 -17.5564 -31.61395 -90.18424 -39.70783
sigma^2: 0.0018
AIC AICc BIC
2471.476 2474.749 2533.204
You can also use the tidy()
function.
victoria_dept_stores_ets_mbl %>%
select(MAdA) %>%
tidy() %>%
mutate(across(where(is.numeric), round, digits = 2)) %>%
kable() %>%
kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)
.model | term | estimate |
---|---|---|
MAdA | alpha | 0.13 |
MAdA | beta | 0.00 |
MAdA | gamma | 0.14 |
MAdA | phi | 0.98 |
MAdA | l[0] | 272.43 |
MAdA | b[0] | 2.04 |
MAdA | s[0] | 297.51 |
MAdA | s[-1] | 35.68 |
MAdA | s[-2] | -15.15 |
MAdA | s[-3] | -44.51 |
MAdA | s[-4] | -55.06 |
MAdA | s[-5] | -17.59 |
MAdA | s[-6] | -3.00 |
MAdA | s[-7] | -18.80 |
MAdA | s[-8] | -17.56 |
MAdA | s[-9] | -31.61 |
MAdA | s[-10] | -90.18 |
MAdA | s[-11] | -39.71 |

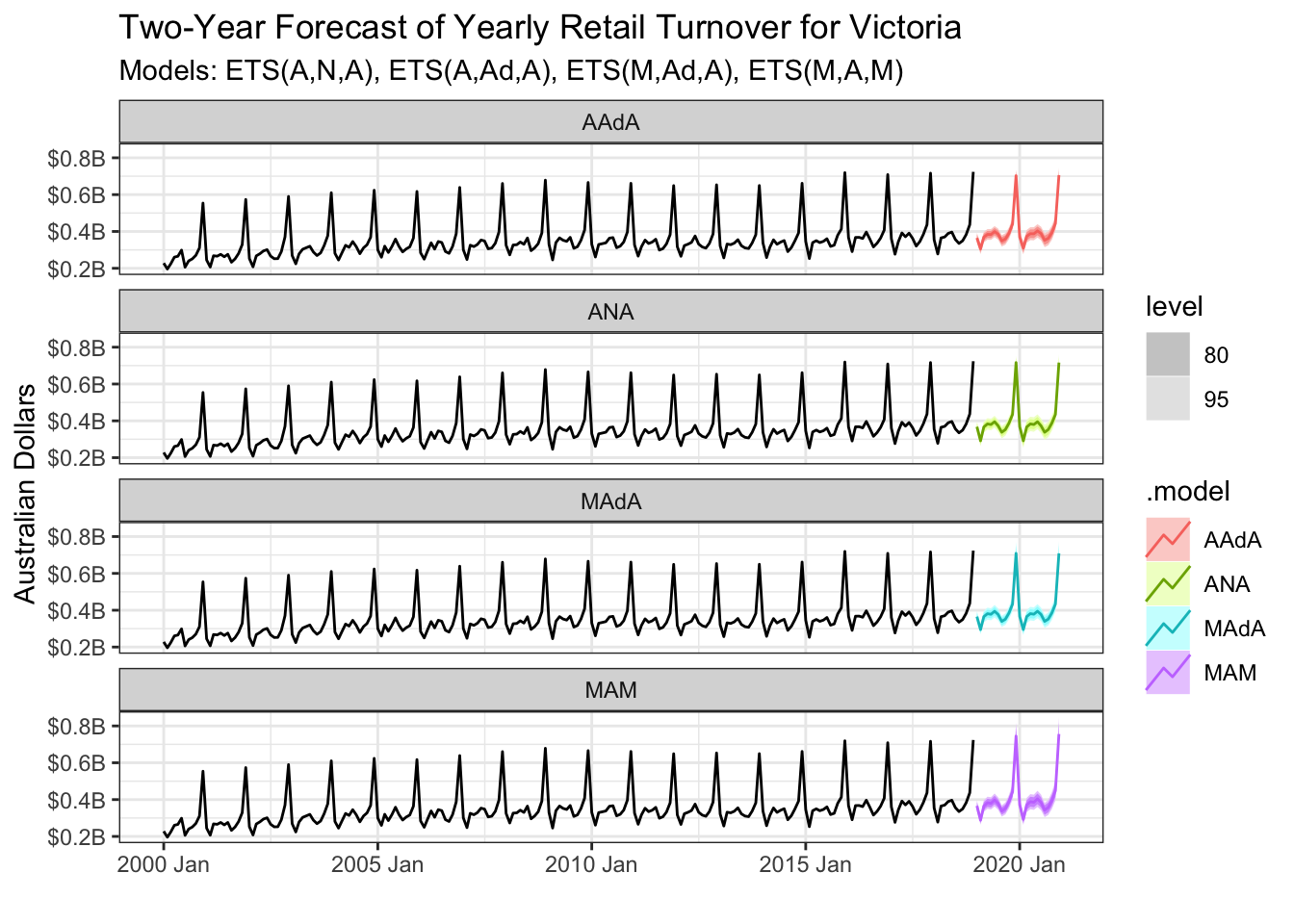

Selecting just a few of these models, we can see how the forecasts over the next few years play out.
victoria_dept_stores_ets_mbl %>%
select(ANA, AAdA, MAdA, MAM) %>%
forecast(h = "2 years") %>%
autoplot(victoria_dept_stores_tsbl) +
facet_wrap(~ .model, ncol = 1) +
theme_bw() +
scale_y_continuous(
labels = scales::label_dollar(accuracy = 0.1, scale = 1e-3, suffix = "B")
) +
labs(
title = "Two-Year Forecast of Yearly Retail Turnover for Victoria",
subtitle = "Models: ETS(A,N,A), ETS(A,Ad,A), ETS(M,Ad,A), ETS(M,A,M)",
x = "",
y = "Australian Dollars"
)
ARIMA
ARIMA models are composed of three terms:
- Autoregressive (AR): lagged observations of the series
- Integrated (I): differencing of the series to make it stationary
- Moving Average (MA): lagged errors
Stationarity is a key assumption of this model, and the reason for the “I” term. Essentially, stationarity is when all the observations in the series that come after any observation ‘t’ do not depend on what the value of ‘t’ was. In other words, patterns are not really predictable in the long-run (the past cannot necessarily predict the future) and the time-series is roughly horizontal with constant variance. If this assumption is not met, the data can be differenced (the observation at t+1 minus the observation at time t) and the result of the differencing will often be stationary. The maximum number of times data should be differenced is twice, according to Dr. Hyndman.
The feasts
package provides the unitroot_kpss()
function to test the stationarity assumption. The KPSS Test tests for a unit root, where the null hypothesis is essentially that the series is stationary. If the test returns a p-value less than 0.05, we should difference the data and test again.
victoria_dept_stores_tsbl %>%
features(Turnover, unitroot_kpss) %>%
mutate(across(where(is.numeric), round, digits = 2)) %>%
kable() %>%
kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)
kpss_stat | kpss_pvalue |
---|---|
1.98 | 0.01 |
Should we receive a result with a p-value of less than 0.05 (as above), we can use the difference()
function within features()
to difference the series and then apply the KPSS test again.
victoria_dept_stores_tsbl %>%
features(difference(Turnover), unitroot_kpss) %>%
mutate(across(where(is.numeric), round, digits = 2)) %>%
kable() %>%
kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)
kpss_stat | kpss_pvalue |
---|---|
0.04 | 0.1 |
Once we have determined if differencing is required, we can move to fitting ARIMA models. We can pick the AR, differencing, and MA terms using the pdq
function within the ARIMA()
function. In ARIMA terminology:
- Parameter ‘p’ is the number of AR terms (lags of the response variable)
- Parameter ‘d’ is the number of times to difference the series
- Parameter ‘q’ is the number of MA terms (lags of the error terms)
Note that these lags are linear in time, meaning they are the period(s) directly before the base period, and they do not account for seasonality. For example, if we have monthly data, a lag of one will take the month before, a lag of two will take two months before, and so on. If we want to consider seasonality we need to use seasonal lags. For monthly data, we would take the 12th lag for the month in the previous year. Again, fable
allows us to select the seasonal terms using the PDQ
function within the ARIMA()
function. In ARIMA terminology:
- Parameter ‘P’ is the number of seasonal AR terms
- Parameter ‘D’ is the number of times to difference the seasons of the series (for example, take the difference between this month and the same month last year)
- Parameter ‘Q’ is the number of seasonal MA terms
If you do not want to select the p, d, q, P, D, and Q parameters yourself, you can just pass the response variable into the ARIMA()
function and the underlying algorithm will select the values that minimize the AICc.
victoria_dept_stores_arima_mbl <- victoria_dept_stores_tsbl %>%
model(
arima_211_000 = ARIMA(Turnover ~ pdq(2,1,1) + PDQ(0,0,0)),
arima_012_002 = ARIMA(Turnover ~ pdq(0,1,2) + PDQ(0,0,2)),
arima_200_010 = ARIMA(Turnover ~ pdq(2,0,0) + PDQ(0,1,0)),
arima_auto = ARIMA(Turnover)
)
glimpse(victoria_dept_stores_arima_mbl)
Rows: 1
Columns: 4
$ arima_211_000 <model> [ARIMA(2,1,1)]
$ arima_012_002 <model> [ARIMA(0,1,2)(0,0,2)[12]]
$ arima_200_010 <model> [ARIMA(2,0,0)(0,1,0)[12] w/ drift]
$ arima_auto <model> [ARIMA(2,1,1)(1,1,2)[12]]
Like before, we can use the report()
function to check out a particular model.
Series: Turnover
Model: ARIMA(2,1,1)(1,1,2)[12]
Coefficients:
ar1 ar2 ma1 sar1 sma1 sma2
-0.2336 -0.1432 -0.7237 -0.8059 0.1900 -0.5586
s.e. 0.0939 0.0852 0.0712 0.2862 0.2785 0.1707
sigma^2 estimated as 193.8: log likelihood=-872.18
AIC=1758.35 AICc=1758.89 BIC=1781.94
Also like before, the tidy()
function can be used.
victoria_dept_stores_arima_mbl %>%
select(arima_auto) %>%
tidy() %>%
mutate(across(where(is.numeric), round, digits = 2)) %>%
kable() %>%
kable_styling(bootstrap_options = c("striped", "hover"), full_width = FALSE)
.model | term | estimate | std.error | statistic | p.value |
---|---|---|---|---|---|
arima_auto | ar1 | -0.23 | 0.09 | -2.49 | 0.01 |
arima_auto | ar2 | -0.14 | 0.09 | -1.68 | 0.09 |
arima_auto | ma1 | -0.72 | 0.07 | -10.16 | 0.00 |
arima_auto | sar1 | -0.81 | 0.29 | -2.82 | 0.01 |
arima_auto | sma1 | 0.19 | 0.28 | 0.68 | 0.50 |
arima_auto | sma2 | -0.56 | 0.17 | -3.27 | 0.00 |

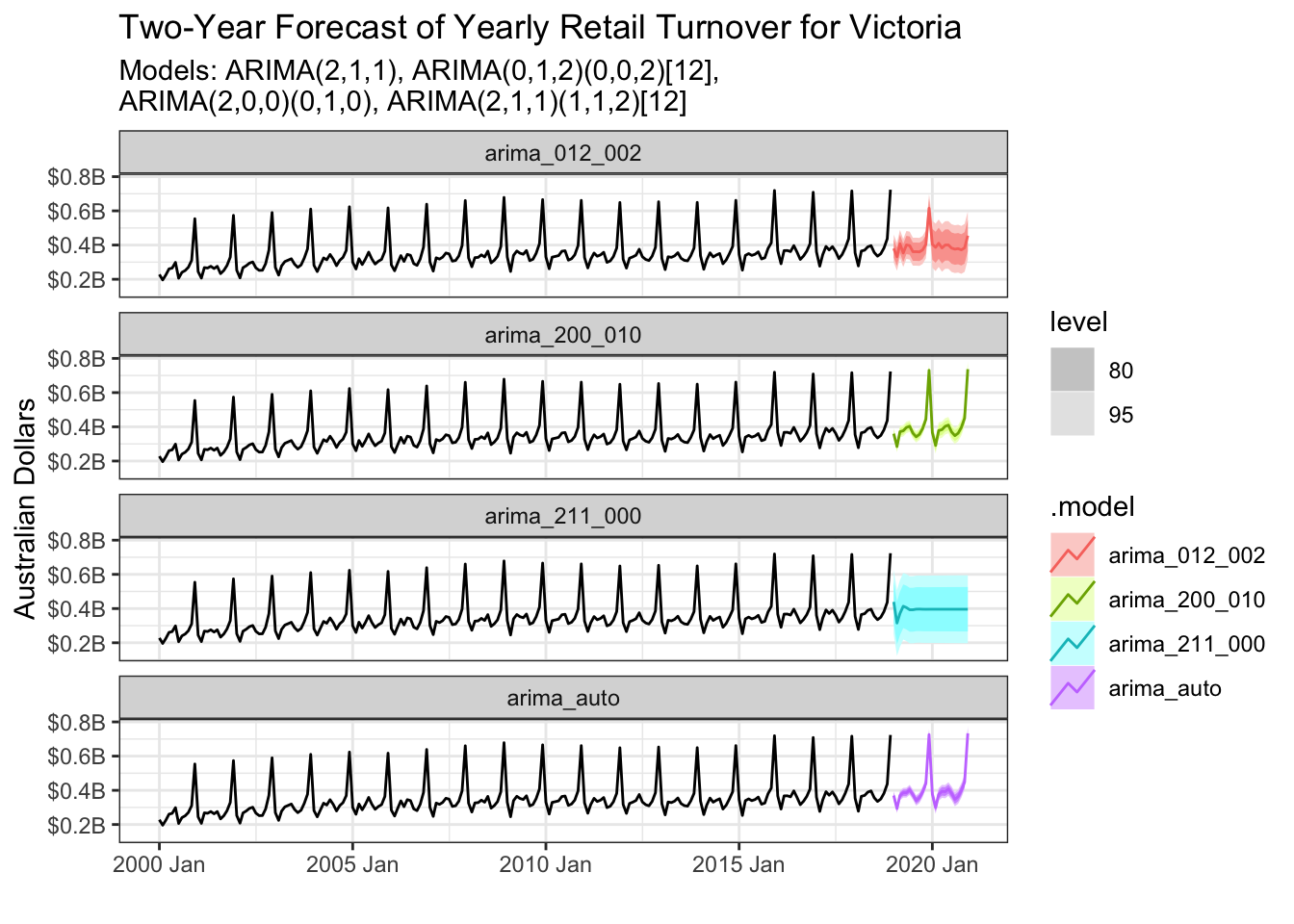

Once we have a model we like, we can forecast ahead and plot the results.
victoria_dept_stores_arima_mbl %>%
forecast(h = "2 years") %>%
autoplot(victoria_dept_stores_tsbl) +
facet_wrap(~ .model, ncol = 1) +
theme_bw() +
scale_y_continuous(
labels = scales::label_dollar(accuracy = 0.1, scale = 1e-3, suffix = "B")
) +
labs(
title = "Two-Year Forecast of Yearly Retail Turnover for Victoria",
subtitle = str_glue("Models: ARIMA(2,1,1), ARIMA(0,1,2)(0,0,2)[12],
ARIMA(2,0,0)(0,1,0), ARIMA(2,1,1)(1,1,2)[12]"),
x = "",
y = "Australian Dollars"
)
Recap
The second day of the workshop focused on forecasting methods, model algorithms, validating those models, and producing and checking the accuracy of forecasts. This first post on the second day covered:
- Building baseline models
- Building complex models
- Producing forecasts
Notes
This post is based on a presentation that was given on the date listed. It may be updated from time to time to fix errors, detail new functions, and/or remove deprecated functions so the packages and R version will likely be newer than what was available at the time.
The R session information used for this post:
R version 4.2.1 (2022-06-23)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS 14.1.1
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.2-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2-arm64/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices datasets utils methods base
other attached packages:
[1] kableExtra_1.3.4 ggplot2_3.4.0 fable_0.3.2 feasts_0.3.0
[5] fabletools_0.3.2 tsibbledata_0.4.1 tsibble_1.1.3 stringr_1.4.1
[9] lubridate_1.9.0 timechange_0.1.1 purrr_0.3.5 tidyr_1.2.1
[13] dplyr_1.0.10
loaded via a namespace (and not attached):
[1] tidyselect_1.2.0 xfun_0.40 urca_1.3-3
[4] lattice_0.20-45 colorspace_2.0-3 vctrs_0.6.3
[7] generics_0.1.3 viridisLite_0.4.1 htmltools_0.5.3
[10] yaml_2.3.5 utf8_1.2.2 rlang_1.1.1
[13] pillar_1.8.1 glue_1.6.2 withr_2.5.0
[16] rappdirs_0.3.3 distributional_0.3.1 lifecycle_1.0.3
[19] progressr_0.11.0 munsell_0.5.0 anytime_0.3.9
[22] gtable_0.3.1 rvest_1.0.3 evaluate_0.16
[25] labeling_0.4.2 knitr_1.40 fastmap_1.1.0
[28] fansi_1.0.3 highr_0.9 Rcpp_1.0.9
[31] renv_0.16.0 scales_1.2.1 webshot_0.5.4
[34] jsonlite_1.8.0 systemfonts_1.0.4 farver_2.1.1
[37] digest_0.6.29 stringi_1.7.12 grid_4.2.1
[40] cli_3.6.1 tools_4.2.1 magrittr_2.0.3
[43] tibble_3.1.8 pkgconfig_2.0.3 ellipsis_0.3.2
[46] xml2_1.3.3 rmarkdown_2.16 svglite_2.1.0
[49] httr_1.4.4 rstudioapi_0.14 R6_2.5.1
[52] nlme_3.1-157 compiler_4.2.1
